Name: Autel Robotics Smart Controller SE for EVO II V3
Brand: Autelindo
Price: 15500000.0 IDR
Availability: InStock

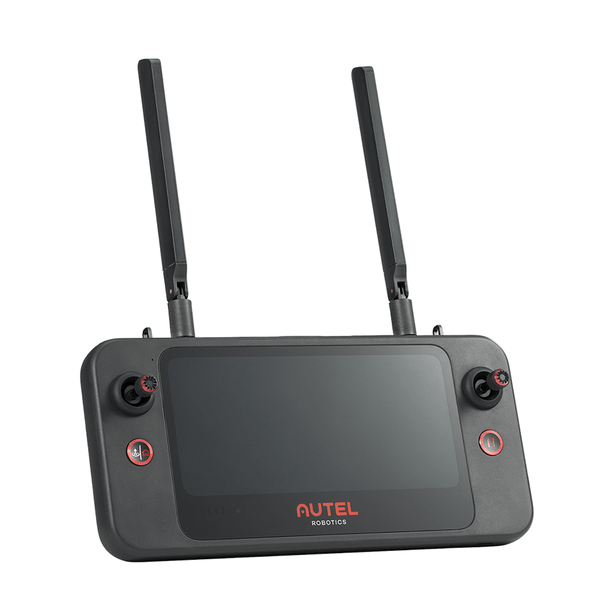

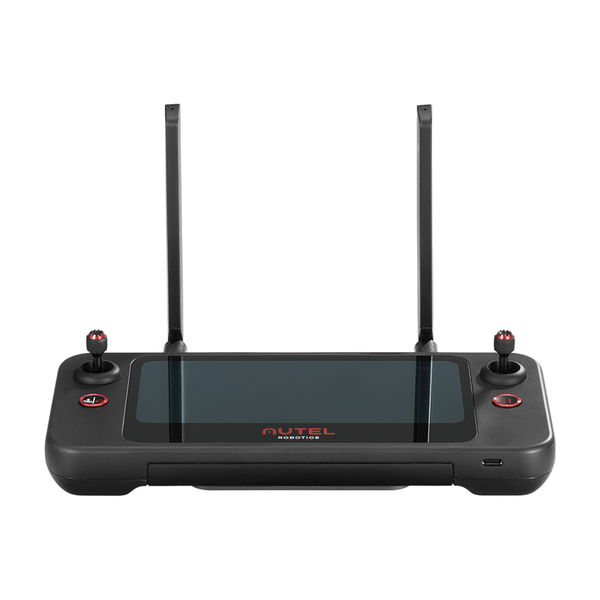

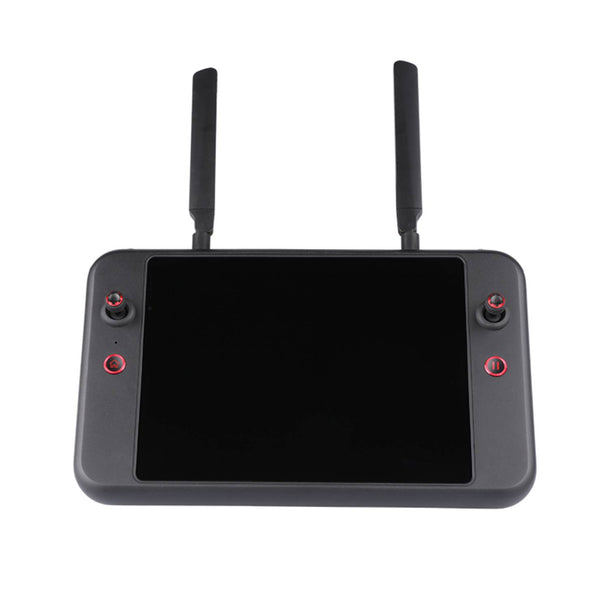

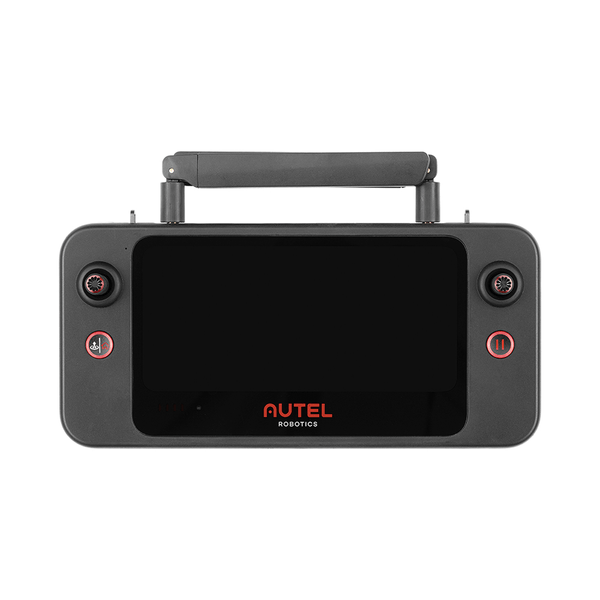

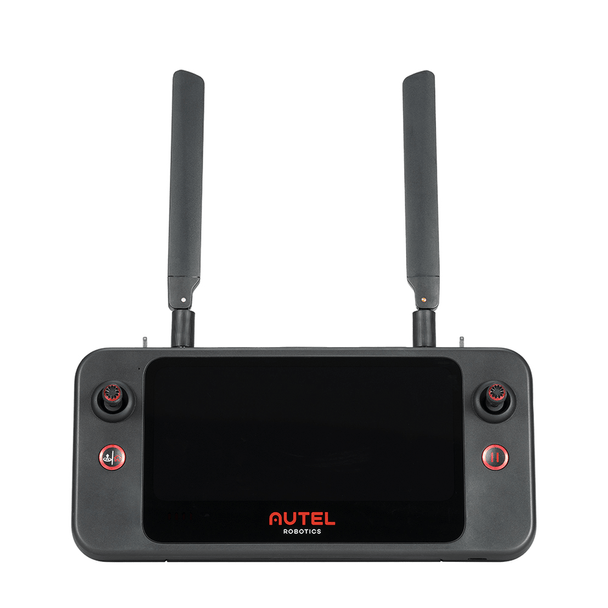

Autel Robotics Smart Controller SE for EVO II V3

Rp 15.500.000

Termasuk pajak.

Stok tersedia, siap dikirim
Persediaan sedang dalam perjalanan

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

OVERVIEW

Smart Controller SE comes with a 6.4-inch OLED touch screen and latest gen 8-core processor for HD image transmission. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 15km away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party Apps and an IP43 rating ensures all weather performance.

High Resolution OLED Screen

The Autel Smart Controller SE comes with a 6.4" OLED 2340x1080 touch screen with exceptional touch sensitivity. The OLED's high contrast and 800 nits brightness makes the Smart Controller SE readable in most daylight conditions.

Autel SkyLink 2.0 Transmission Technology

Autel Smart Controller SE uses Autel's latest SkyLink 2.0 transmission technology, capable of QHD video within 1km and HD video up to 15km away. SkyLink 2.0 utilizes triple frequencies of 5.8Ghz, 2.4Ghz, and 900 Mhz for enhanced anti interference capabilities in urban environments.

3rd Party App Support

Smart Controller SE's Android system allows for the installation and customization of 3rd party apps.

Livestream

Smart Controller SE supports livestreaming to a local monitor via the HDMI port or through 3rd party apps downloads.

High Performance Hardware

Featuring Qualcomm 8-core processor of 14nm technology, the Smart Controller SE comes with stronger computing capability while lowering power consumption. It is capable of decoding 4K videos and processing audios in high-fidelity. The supporting of Wi-Fi 5 protocol enables it to download third-party applications real fast.

Weather Sealed and Temperature Tolerant

Autel Smart Controller SE has an IP43 against dust and light rain. An operating temperature between -10°C to 40°C enhances reliability of the Smart Controller SE in all seasons.

Lightweight and Portable

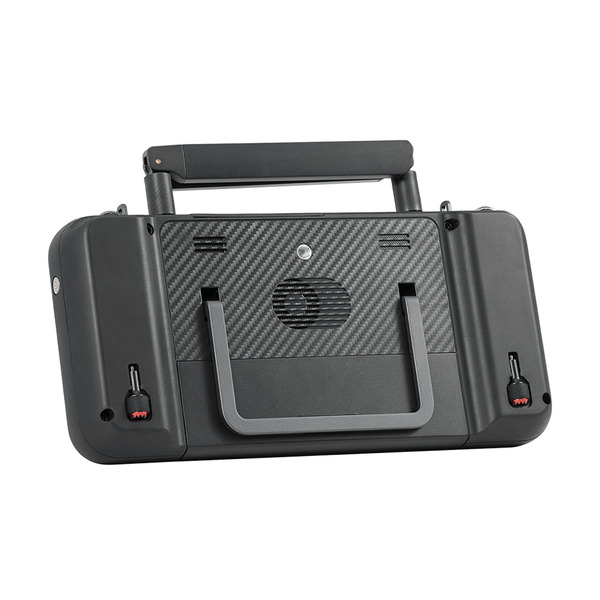

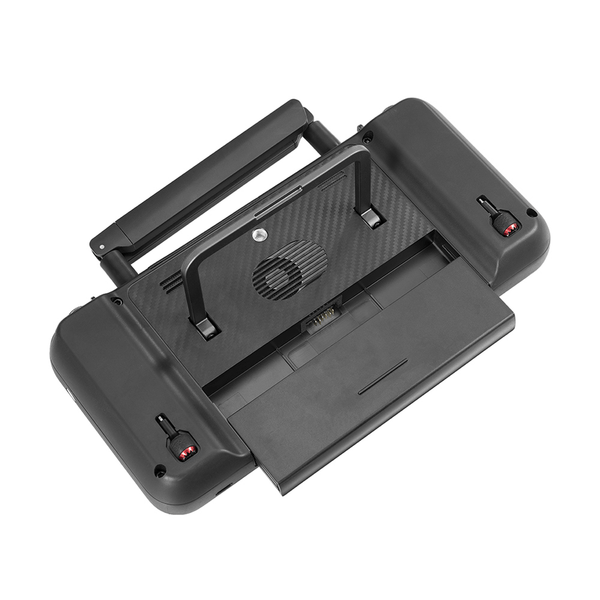

Coming in at 617g, the Smart Controller SE is light enough for all day carrying and removable joysticks are conveniently stowed in the backside for easy access.

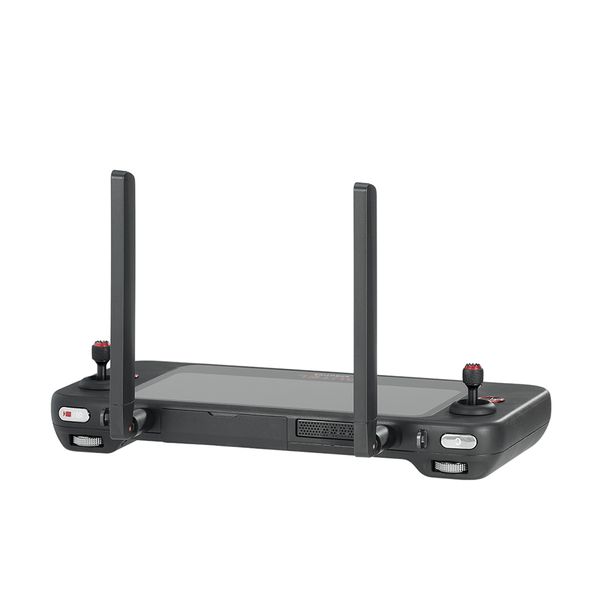

Multi-Ports

HDMI, quick removable TF card, and USB ports solve all your broadcasting, charging, and transfer needs. And SMA compatible connectors for quick replacements or 3rd party upgrades.

SPECS

Image Transmission

Antenna

2 Antennas, 1T2R

*Operating Frequency

902-928MHz（FCC）

2.400-2.4835GHz

5.725-5.850GHz（Non-Japan）

5.650-5.755GHz（Japan Only）

Max Transmission Distance（unobstructed, free of interference）

FCC: 15km

CE/SRRC: 8km

Shutter Speed

Electronic Shutter: 8 ~ 1/8000s

Transmitter Power (EIRP)

FCC：≤33dBm

CE：≤20dBm@2.4G, ≤14dBm@5.8G

SRRC：≤20dBm@2.4G, ≤33dBm@5.8G/5.7G

Wi-Fi

Protocol

Wi-Fi 802.11a/b/g/n/ac, 2x2 MIMO

*Operating Frequency

2.400-2.4835GHz

5.725-5.850GHz

Transmitter Power (EIRP)

FCC：≤26dBm

CE：≤20dBm@2.4G, ≤14dBm@5.8G

SRRC：≤20dBm@2.4G, ≤26dBm@5.8G°

Bluetooth

Protocol

Bluetooth 5.0

*Operating Frequency

2.400-2.4835GHz

Transmitter Power (EIRP)

≤11dBm

FCC：≤26dBm

CE：≤20dBm@2.4G, ≤14dBm@5.8G

SRRC：≤20dBm@2.4G, ≤26dBm@5.8G°

Screen

Resolution

2340×1080

Dimensions

6.4inches

Frame Rate

60fps

Max. Brightness

800nit

Touch Screen

10-point multi-touch

Battery

Type

Li-ion

Rated Capacity

1900mAh

Nominal Voltage

7.7V

Rated Power

14.63W

Operating Time

~2 hours (Max. Brightness)

~3 hours (50% Brightness)

Charging Time

90 minutes

Charging Temperature

5℃ to 45℃（41℉ to 113℉）

Power Adapter

Input

100-240V ~ 50/60HZ 1A Max

Output

5V 3A，9V 2A，12V 2.5A

Rated Power

30W

General Specifications

Internal Storage

ROM 128GB + expandable storage via micro-SD card

Video Output Port

HDMI

Video Output Port

HDMI

USB-A Voltage/Current

5V/2A

Operating Temperature

-10℃ to 40℃ (14℉ to 104℉)

Storage Temperature

>3 months: -20℃ to 25℃（-4℉ to 77℉）

1-3 months: -20℃ to 45℃（-4℉ to 113℉）

<1 month: -20℃ to 60℃（-4℉ to 140℉）

Ingress Protection

IP43

Dimensions

226.3×137.7×31.5mm (antennas folded)

226.3×215.4×31.5mm (antennas unfolded)

Weight

617g

Supported Aircrafts

EVO II Pro V3

EVO II Dual 640T V3

EVO II RTK Series V3.

EVO II Enterprise V3

GNSS

GPS/GLONASS/Galileo/BeiDou/NavIC/QZSS

*The operating frequency band varies according to different countries and models. *We will support more Autel Robotics aircrafts in the future, please visit our official website https://www.autelrobotics.com/ for the latest information.

IN THE BOX

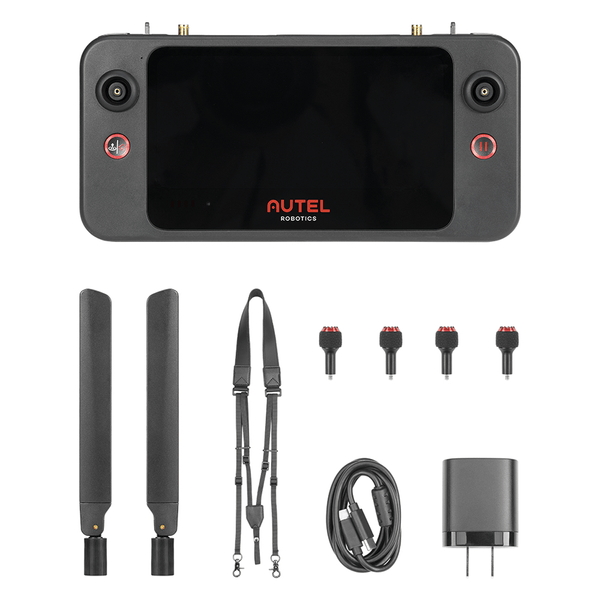

Autel Robotics Smart Controller SE Package List
